Test Report
Chromatography conditions:
Column |
Xtimate C8(3.0×250mm,3μm) |
||||||
Mobile Phase |
0.028mol/L disodium hydrogen phosphate solution (pH=3.1): methanol = 82:18 |
||||||
Column Temperature |
40℃ |
||||||
Detector |
UV |
||||||
Injection Volume |
20μL |
||||||
Flow Rate |
0.6 ml/min |
||||||
Detect wavelength |
361 nm |
||||||
Elution procedure |
|
||||||
Note |
/ |
Chromatogram and Data:
- 1) Analysis chart of vitamin B12 impurity spiked test solution:
Serial number |
Peak name |
Retention time (min) |
Peak Area(mAU*min) |
S/N |
Relative peak area(%) |
Resolution(EP) |
Number of plates(EP) |
Asymmetry(EP) |
1 |
Impurity H |
3.738 |
0.885 |
4.7 |
0.20 |
24.19 |
10112 |
1.33 |
2 |
Vitamin B12 |
12.353 |
413.471 |
1052.9 |
92.03 |
11.53 |
7632 |
1.60 |
3 |
Impurity A |
19.318 |
6.741 |
87.7 |
1.50 |
2.47 |
14318 |
0.90 |
4 |
Impurity C |
21.038 |
15.247 |
171.1 |
3.39 |
4.86 |
12556 |
0.93 |
5 |
Impurity D |
24.795 |
5.473 |
218.4 |
1.22 |
1.50 |
15403 |
0.88 |
6 |
Impurity E |
25.968 |
0.447 |
19.6 |
0.10 |
4.11 |
17983 |
0.97 |
7 |
Impurity B |
29.480 |
7.003 |
144.0 |
1.56 |
N.a. |
15814 |
1.06 |
Sum |
|
449.267 |
|
100.0 |
48.65 |
|
|
- 2) Analysis result reproducibility verification superposition spectrum:
Serial number |
Peak name |
Retention time (min) |
Peak Area(mAU*min) |
S/N |
Relative peak area(%) |
Resolution(EP) |
Number of plates(EP) |
Asymmetry(EP) |
1 |
Impurity H |
3.738 |
0.885 |
4.7 |
0.20 |
24.19 |
10112 |
1.33 |
2 |
Vitamin B12 |
12.353 |
413.471 |
1052.9 |
92.03 |
11.53 |
7632 |
1.60 |
3 |
Impurity A |
19.318 |
6.741 |
87.7 |
1.50 |
2.47 |
14318 |
0.90 |
4 |
Impurity C |
21.038 |
15.247 |
171.1 |
3.39 |
4.86 |
12556 |
0.93 |
5 |
Impurity D |
24.795 |
5.473 |
218.4 |
1.22 |
1.50 |
15403 |
0.88 |
6 |
Impurity E |
25.968 |
0.447 |
19.6 |
0.10 |
4.11 |
17983 |
0.97 |
7 |
Impurity B |
29.480 |
7.003 |
144.0 |
1.56 |
N.a. |
15814 |
1.06 |
Sum |
|
449.267 |
|
100.0 |
48.65 |
|
|

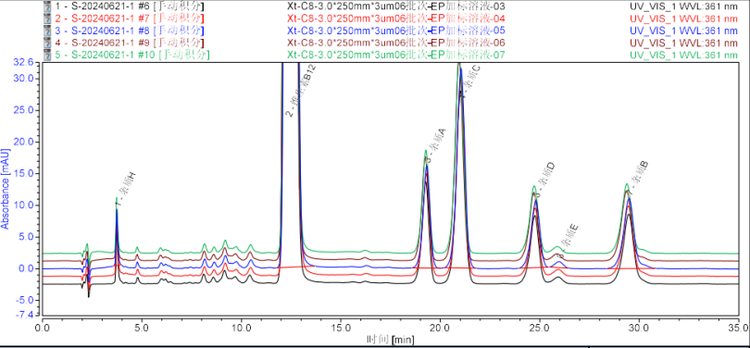

- 3) Multi-needle analysis of pressure stability overlay:
Conclusion:
Vitamin B12 and its impurities were analyzed under these chromatographic conditions using a Welch column Xtimate C8 (3.0×250mm, 3μm). Vitamin B12 and impurities A, C, D, E and B eluted in sequence with a separation degree of no less than 1.5. After multiple injections of the spiked solution of the test sample, the results showed good reproducibility and stable pressure, which met the analysis requirements.
