Normal/Reversed Phase Columns

P/N: 00310-02018

$256.00 USD

Welchrom C18 column is an economical option from Welch Materials. With its low column pressure, affordable pricing, and high cost-performance ratio, it outperforms other products in the same price ...

P/N: 00310-02016

$390.00 USD

P/N: 00310-02015

$358.00 USD

P/N: 00310-02014

$288.00 USD

P/N: 00310-02013

$307.00 USD

P/N: 00310-02012

$275.00 USD

P/N: 00310-02011

$262.00 USD

P/N: 00310-02010

$256.00 USD

P/N: 00310-02009

$243.00 USD

P/N: 05610-21102

$1,330.00 USD

Welch preparative column uses the same packing materials as does analytical column, to ensure the best reproducibility of analysis and preparative scale. Special packing technique and stainless mod...

P/N: 05610-21106

$3,100.00 USD

P/N: 05650-21106

$3,100.00 USD

P/N: 00450-01043

$420.00 USD

Topsil Silica is suitable for the separation of highly polar compounds and lipophilic compounds, offering distinct selectivity compared to other silica columns from Welch Materials. With lower colu...

P/N: 00450-01041

$400.00 USD

P/N: 00450-01014

$460.00 USD

P/N: 00430-01035

$430.00 USD

Topsil NH2 offers distinct selectivity compared to other amino columns from Welch Materials. It is suitable for monosaccharide separation under reversed-phase conditions and polar compound separati...

P/N: 00430-01043

$420.00 USD

P/N: 00430-01041

$400.00 USD

P/N: 00430-02043

$470.00 USD

P/N: 00430-02041

$450.00 USD

P/N: 00440-01043

$420.00 USD

Topsil CN offers distinct selectivity compared to other cyano columns from Welch Materials. With lower column pressure and higher efficiency, it is an economical HPLC column choice.

P/N: 00440-01041

$400.00 USD

Topsil CN offers distinct selectivity compared to other cyano columns from Welch Materials. With lower column pressure and higher efficiency, it is an economical HPLC column choice.

P/N: 00460-01043

$470.00 USD

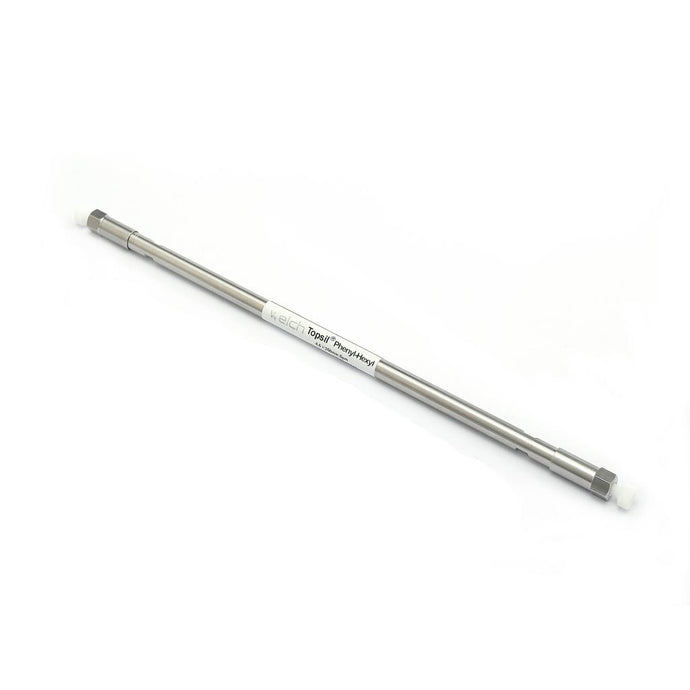

Topsil Phenyl-Hexyl offers distinct selectivity compared to other phenyl columns from Welch Materials. It offers exceptional selectivity for compounds containing phenyl groups and short-chain alkyl...

P/N: 00460-01042

$470.00 USD

Column Specifications

C18 Columns

Series	Column	pH Range	Max Temperature	Max Pressure Tolerance
Ultisil Series	Ultisil LP-C18	0.5-8.0	70 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	40 MPa (≥5 μm) 60 MPa (<5 μm)
	Ultisil LP-Aq	1.0-8.0	70 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)
	Ultisil XB-C18	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)
	Ultisil AQ-C18	2.0-8.0
	Ultisil Plus C18	2.0-8.0
	Ultisil Alk C18	2.0-8.0
	Ultisil PAH	2.0-8.0
	Ultisil Polar RP	2.0-8.0
	Ultisil ODS-3	2.0-8.0
	Ultisil XS-C18	2.0-8.0
	Ultisil Plus LP-C18	0.5-8.0
Xtimate Series	Xtimate C18	1.0-12.5	70 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	40 MPa (≥5 μm) 60 MPa (<5 μm)
Xtimate Series	Xtimate Polar RP	1.0-12.5	70 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	40 MPa (≥5 μm) 60 MPa (<5 μm)
Blossmate Series	Blossmate C18	2.0-8.0	60 °C	40 MPa
	Blossmate Aqs C18	2.0-8.0
	Blossmate ST-C18	1.0-11.0
Topsil Series	Topsil C18	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	40 MPa
Welchrom Series	Welchrom C18	2.0-8.0	60 °C	40 MPa
Welchrom Series	Welchrom Vantage C18	2.0-8.0	60 °C	40 MPa
Boltimate Series	Boltimate C18	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	60 MPa
	Boltimate EXT-C18	1.5-12.0
	Boltimate LP-C18	1.0-8.0

C8, C4, C3, C1 and Phenyl Columns

Series	Column	pH Range	Max Temperature	Max Pressure Tolerance
Ultisil Series	Ultisil XB-C8	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	40 MPa (≥5 μm) 60 MPa (<5 μm)
	Ultisil LP-C8	1.0-8.0	70 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)
	Ultisil F-C8	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)
	Ultisil Plus-C8	2.0-8.0
	Ultisil XB-Phenyl	2.0-8.0
	Ultisil Phenyl-Ether	2.0-8.0
	Ultisil PFP	2.0-8.0
	Ultisil Plus-phenyl	2.0-8.0
	Ultisil XB-C4	2.0-8.0
	Ultisil LP-C3	1.0-8.0	70 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)
	Ultisil XB-C30	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)
	Ultisil XB-C1	2.0-8.0
	Ultisil XB-CN	2.0-8.0
	Ultisil LP-CN	1.0-8.0
Xtimate Series	Xtimate C8	1.0-12.5	70 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	40 MPa (≥5 μm) 60 MPa (<5 μm)
	Xtimate Phenyl-Hexyl	1.0-12.5
	Xtimate C4	1.0-12.5
Blossmate Series	Blossmate C4	2.0-8.0	60 °C	40 MPa
Blossmate Series	Blossmate Phenyl	2.0-8.0	60 °C	40 MPa
Topsil Series	Topsil C8	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	40 MPa
	Topsil phenyl-Hexyl	2.0-8.0
	Topsil CN	2.0-8.0
Welchrom Series	Welchrom C8	2.0-8.0	60 °C	40 MPa
Boltimate Series	Boltimate C18	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	60 MPa
	Boltimate Phenyl-Hexyl	2.0-8.0
	Boltimate EXT-C18	1.5-12
	Boltimate EXT-PFP	1.5-10
	Boltimate HILIC	2.0-8.0
	Boltimate LP-C18	1.0-8.0
	Boltimate C8	2.0-8.0
	Boltimate Phenyl	2.0-8.0

Normal-Phase Columns

Series	Column	pH Range	Max Temperature	Max Pressure Tolerance
Ultisil Series	Ultisil SiO2	2.0-8.0	70 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	40 MPa (≥5 μm) 60 MPa (<5 μm)
	Ultisil Diol	2.0-8.0
	Ultisil XB-NH2	2.0-8.0
	Ultisil XB-CN	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)
Topsil Series	Topsil Silica	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	40 MPa
Topsil Series	Topsil NH2	2.0-8.0	60 °C (mobile phase pH ≤6.5), 40 °C (mobile phase pH >6.5)	40 MPa
