[Reader Insight] Why Are Chromatograms "Peak"-Shaped: A Guide for New Laboratory Analysts
Author: OU Shuo-Jun
Introduction
Chromatograms are a daily sight for laboratory analysts, providing crucial data beyond just peak area and peak height. Factors like peak width, half-width, tailing factor, resolution, and theoretical plates also play a pivotal role in evaluating chromatographic performance.
When first encountering chromatography, you might wonder: why do analytes form peaks of various shapes—tall, short, broad, narrow, fronting, or tailing? More intriguingly, why do chromatograms consistently present peaks rather than other shapes?
Where Chromatography Begins...
To understand this, let’s revisit a fundamental chromatography experiment—leaf pigment separation. In this simple technique, you coat a plastic sheet with a thin layer of polyamide powder. Once it solidifies, you apply crushed leaf extract near the bottom and immerse the sheet in anhydrous ethanol. As the ethanol migrates upward, the pigments separate and spread outward from their central point.
At this stage, it is easy to observe pigment separation visually. The colors and their migration distances give clues about the pigments involved. However, quantifying their concentration is a different challenge. In principle, pigment concentration correlates linearly with color intensity. But the human eye lacks the precision to measure this reliably.
An alternative approach is to measure the diameter of each pigment spot. While this provides a quantifiable parameter, the results lack accuracy. The same issue applies to quantification in modern chromatography if we rely solely on peak width.
Chromatography advanced to address these limitations, thanks to high-efficiency columns and sensitive detectors. Detectors enable direct measurement of analyte concentration, akin to quantifying color intensity in the pigment experiment.
Why Peaks?

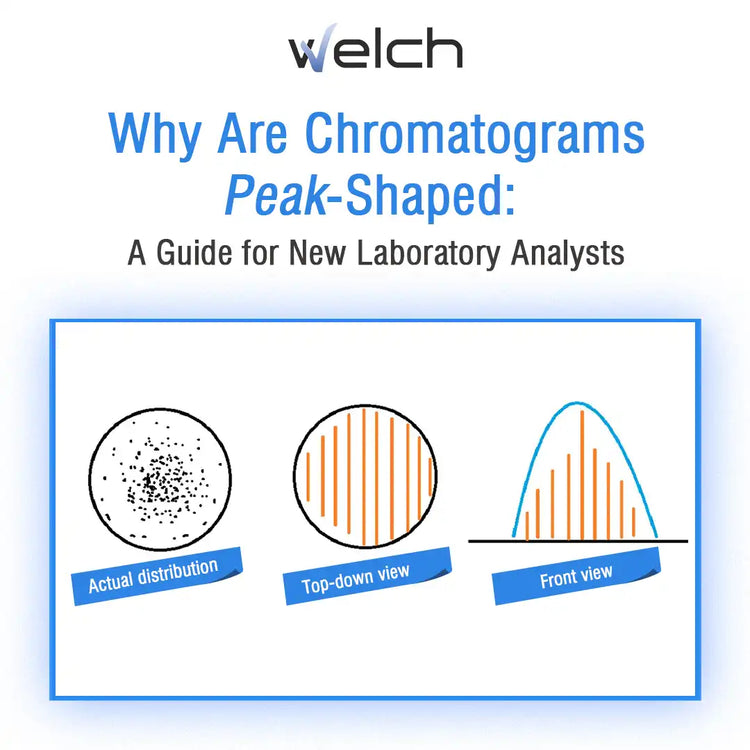

The shape of chromatographic peaks is rooted in the spatial distribution of analyte molecules. Imagine the molecules forming a three-dimensional sphere: the concentration is highest at the center and tapers off toward the edges. When this spatial data is translated into a single baseline, it forms a triangular or cone-like profile.
In early techniques like thin-layer chromatography (TLC), what you observe is the top-down view of this cone, resembling a circular spot. In modern chromatography, detectors provide a front-facing view of the same cone, yielding the peaks we see in chromatograms.
What Influences Peak Shape?
The final shape of a chromatographic peak depends on the degree of analyte dispersion within the column. Ideally, minimal dispersion produces symmetric, narrow peaks, indicative of high column efficiency. Conversely, excessive dispersion results in broader peaks and issues such as tailing, fronting, or peak overlap.
This concept highlights the interplay between analyte distribution in the column and the detector’s interpretation. A narrower and more symmetric spatial distribution translates into sharper and more symmetrical peaks, while broader or asymmetric distributions produce distorted peaks.
Conclusion
Chromatographic peaks are not merely graphical representations but are deeply tied to the physical behavior of analytes within the column. Peaks illustrate the concentration of molecules, as captured and translated by detectors. The shape and symmetry of these peaks are direct indicators of the separation process's efficiency and the quality of the chromatographic system.
Understanding the principles behind peak formation empowers analysts to optimize methods, troubleshoot issues, and achieve precise quantification in their work.
