What is the Dead Volume of A Column?
In chromatography, dead volume plays a critical role in determining chromatographic performance. A larger dead volume can lead to increased sample dispersion, causing peak broadening and poor peak shapes. This article explores the definition, calculation, and reduction strategies for dead volume in chromatographic systems.
Definition of Dead Volume
The term "dead volume" can be understood in two contexts:
- Narrow Definition : Dead volume refers to the void volume within the column that is not occupied by the stationary phase. This is essentially the volume of the mobile phase inside the column.

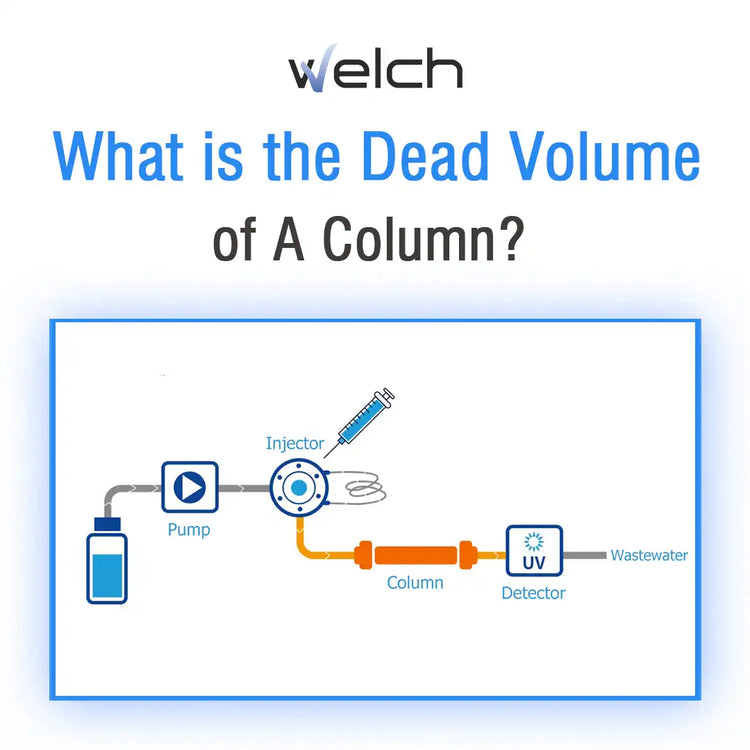

- Broad Definition : Dead volume encompasses the entire volume from the injection point (injector) to the detection point (detector flow cell), excluding the stationary phase within the column. Once the column is connected, this volume, represented as the orange pathway in the diagram below, remains fixed or "dead."
Calculating Dead Volume in HPLC
In HPLC, the dead volume (denoted as V0) represents the space from the injector to the detector flow cell that is not occupied by the stationary phase. It comprises the following components:
- Volume of tubing from injector to column inlet.
- Inter-particle void volume inside the column (Vm), occupied by the mobile phase.
- Volume of tubing from column outlet to detector inlet.
- Volume of the detector flow cell.
Among these, only Vm participates in the chromatographic equilibrium process, while the other three components contribute to peak broadening. To minimize peak dispersion, the volumes of these three non-equilibrium zones should be as small as possible.
Another related concept is dead time (t0), which refers to the retention time of an unretained compound, representing the time it takes for the mobile phase to pass through the column.
Experimental Measurement of Dead Volume
The system's dead volume is typically measured experimentally. A common approach involves injecting a solution that does not interact with the stationary phase. This solution may vary based on the method but often includes compounds like uracil, small amounts of sodium nitrate, or methanol dissolved in the mobile phase. In some cases, pure chromatography-grade methanol is directly injected.
The resulting chromatogram will display a peak corresponding to the dead time (t0), which can be used to calculate the dead volume using the formula:
V0 = t0 × F
Where F is the flow rate of the mobile phase.
Tips to Reduce Dead Volume
To maintain optimal chromatographic performance, minimizing dead volume is essential. Here are some best practices:
Maintain Consistency in Fittings
When replacing tubing or connectors, ensure they match the original specifications. This helps maintain the system's original dead volume and prevents peak broadening due to an increased dead volume.Ensure Proper Connections
When connecting a chromatographic column, verify that the fittings and tubing match perfectly. Special attention should be given to PEEK fittings and connections between tubing and the column to avoid creating void spaces at the junctions (see illustration below).
